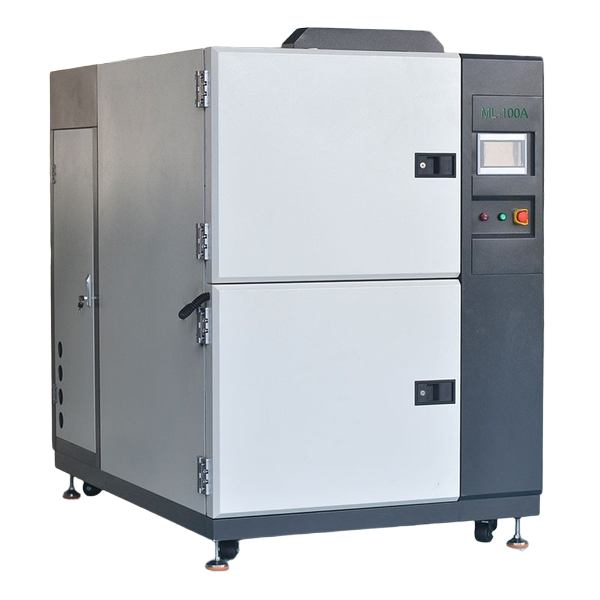

Two-Zone Thermal Shock Test Chamber
Temperature conditions have a large impact on the function and reliability of electronic components, equipment and system. In order to find potential defects in the shortest time, conventional temperature tests are not enough. So that we need to perform a temperature shock test and let the test sample go through multiple sudden temperature changes.
Advantages:
- Wired and wireless network controller: multiple devices can be centrally controlled; test product status can be monitored remotely using cameras (optional)
- Environmentally friendly refrigerants: R404A/R23, R449A/R508B (for Europe)
- Standard machines use a hanging basket-type vertical lifting mechanism, while large machines use a left-right translation mechanism, driven by a cylinder + chain
- Stainless steel inner material
- Shock temperature range: -65°C to +200°C
- Basket switching time: SIOS
- Shock recovery time: <5 min (standard), <3 min (non-standard)
Standard Models:
80L, 100L, 150L, 225L, 408L, 800L, 1000L (Inner size)
