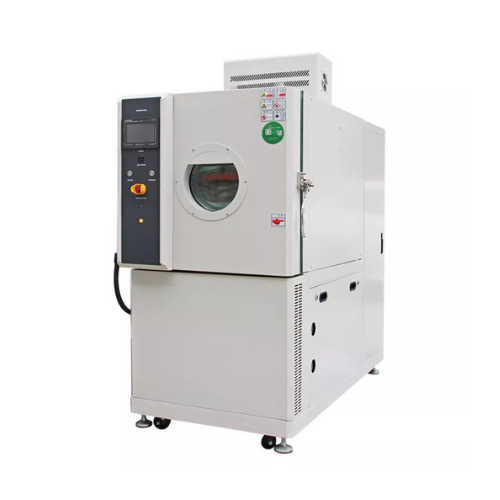

Altitude Chamber

Standard Models:

250L, 500L, 800L, 1000L

Pressure Range:

0.5 KPa to 101.325 KPa (standard atmospheric pressure)

Standard Altitude Range:

Site level to 100,000 feet (30,480m / 8.28 mm Hg / 8.28 Torr)

Optional Altitude Range:

Site level to 150,000 feet (45,720m / 1.10 mm Hg / 1.10 Torr)
Site level to 200,000 feet (60,960m / 0.169 mm Hg / 0.169 Torr)

Optional extended ranges are also available to simulate sea level testing.

Altitude chamber combines temperature and low-pressure altitude with optional humidity to test basic components or sub-assemblies for a variety of industries, such as defense, aerospace, avionics, automotive, electronics and others

Crosby altitude chamber can simulate the temperature, humidity and pressure environment at an altitude of 100,000 feet (30,480 meters).

Advantages:

Well-structured, easy to maintain, and safety-focused
Ingenious design with optimal visual effects
Compact design saves space and ensures ease of operation
Independent sample protection unit to prevent accidental damage to the sample
Choice between air-cooled or water-cooled refrigeration systems
Environmentally friendly refrigerants: R404A/R23, R449A/R508B (for Europe)
Non-contact heating circuit
Temperature range: 10% to 98% RH (standard: 20% to 95%), suitable for repeatable climate testing
